CCD & CT Systems
CCD & CT systems are made by Walvision Intelligent, which was founded in 2018, in Nanjing, and specializes in R&D and manufacturing the CCD vision inspection system and turnkey industrial inspection solutions.
The self-developed powerful software platform-- Argusmart has flexible and free functions that can be quickly adapted to process improvements. Providing customers with planar and 3D multi-dimensional inspection solutions, as well as the full range of AI empowerment guarantees the continuous improvement of inspection accuracy.

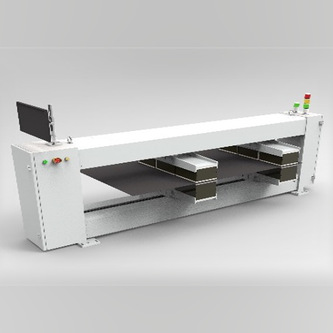

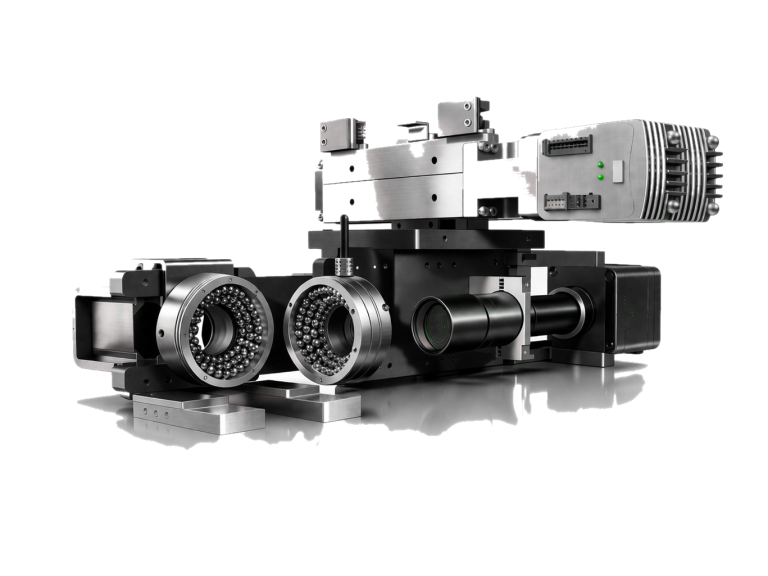

Burr Inspection System
High-speed optical imaging and defect detection for transverse and longitudinal burrs on the edges of electrode sheet slitting.
Features:
- Horizontal and vertical inspection
- 120m/min High-speed full inspection
- Automatic avoidance,threading adaptable
- Integrated design Dust/light - proof

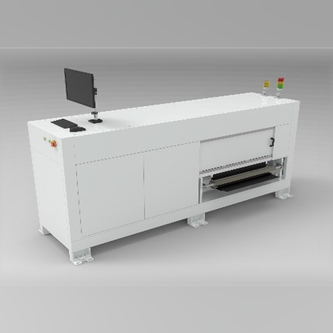

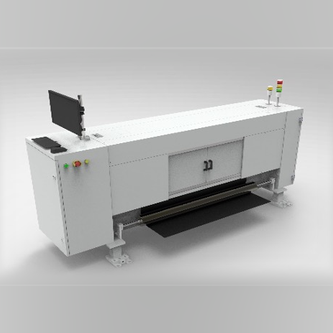

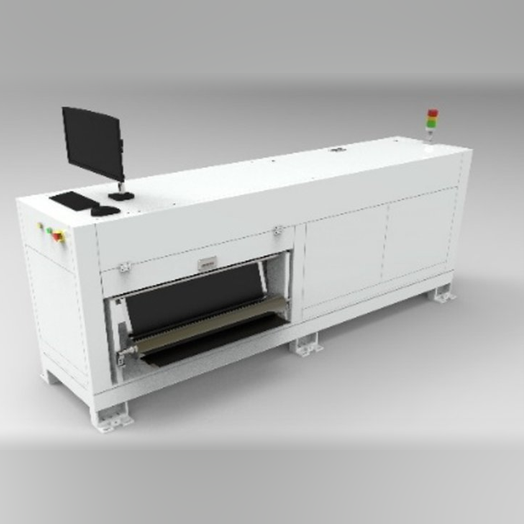

Battery Film Appearance Inspection System
Features:
- Compatible with multiple battery cell
- Customized design solutions to meet production efficiency
- Achieving precise detection and classification accuracy ≥ 98%
- Traceability of defect data
Product Series

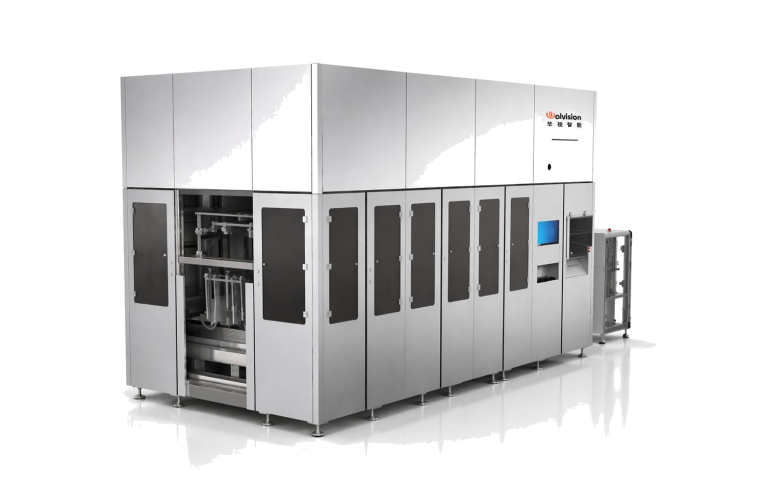

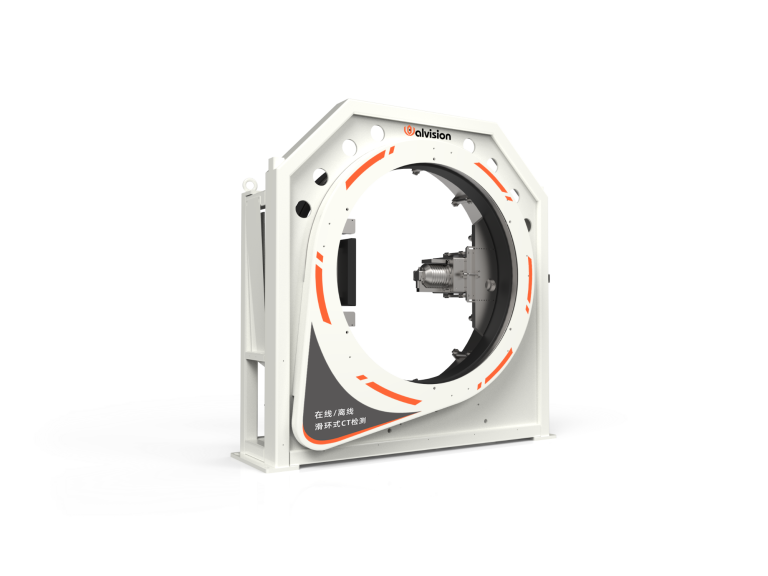

High-precision Industrial CT
CT systems adopt a high-stability marble frame structure, combined with a multi-axis motion mechanism, adapting with high flexibility to diverse CT inspection scenarios.
Features:
- Walk-in integrated design
- Multi-axis precision motion control
- 3D reconstructi on algorithm
- multi-scenario detection

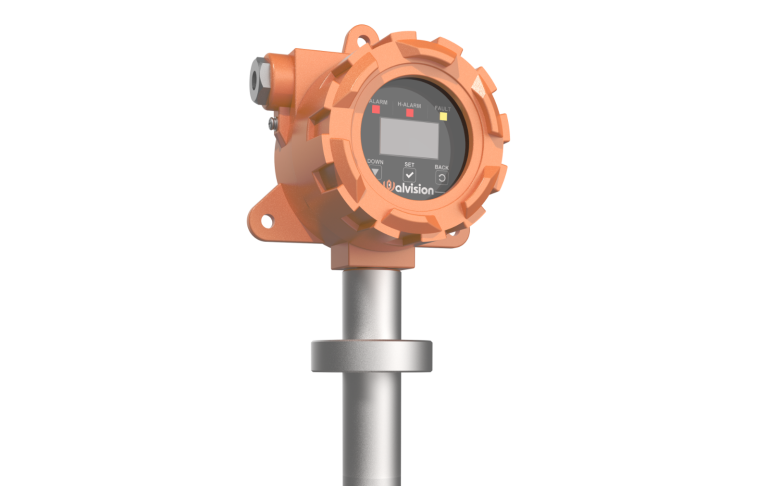

NMP/H2S Gas Detector
Detecting NMP/H2S generated during the production process of traditional liquid batteries/solid-state batteries
Features:
- Multiple range options available
- Waterproof and explosion-proof
- Easy to install and maintain for a long time
Product Series
Argusmart Software Platform
Argusmart is a zero-code visual inspection platform designed for lithium-ion battery applications

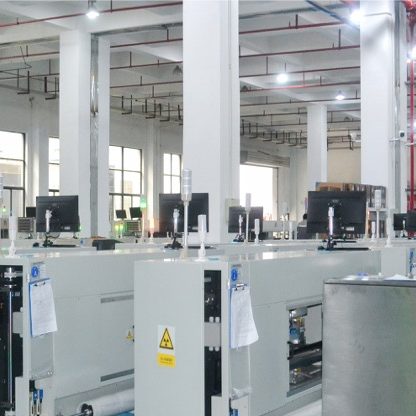

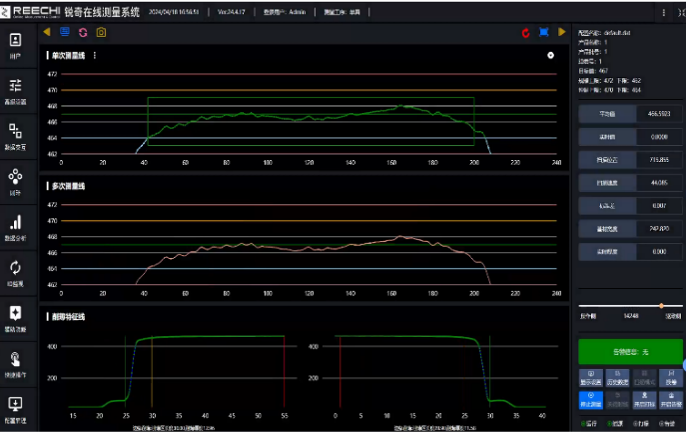

Thickness & Mass loading Gauge
Thickness & Mass loading Gauge are made by Reechi which was established in 2017. Reechi is a technology-driven enterprise specializing in precise online measurement and control of material thickness and mass loading consistency.
The expert technical team boasts over a decade of experience in photoelectric measurement and nuclear detection, enabling Reechi to excel in key technologies like measurement sensors and core algorithms. The exclusive cutting-edge technology includes the X-ray Full-width 100% Measurement Gauge and the 0.4mm ultra-small X-ray spot.

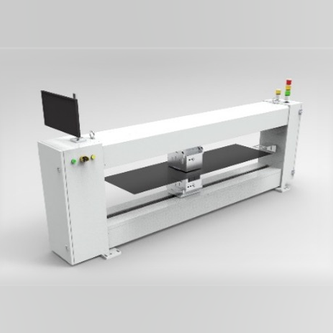

X-ray mass loading gauge
β-ray mass loading gauge
X/β-ray& laser
all-in-one gauge

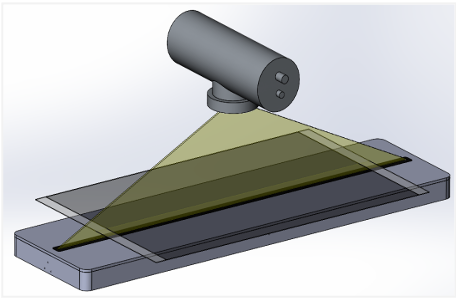

X-ray 100% full-width
measurement gauge
Ray Series

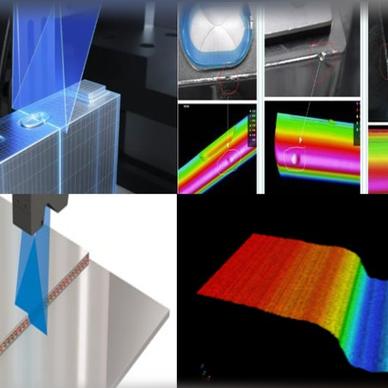

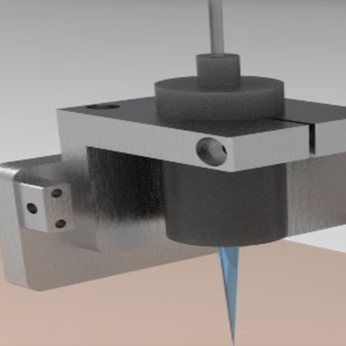

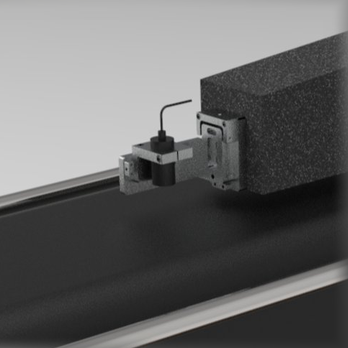

Laser thickness gauge
Spectral confocal thickness gauge
Optical interference thickness gauge

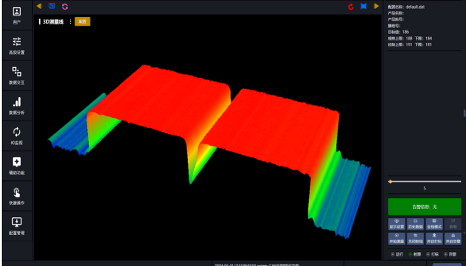

3D profilometer
Optical series
Technical advantages
Application Values
- 100% sampling rate
- Automatic closed-loop adjustment
- Waste reducing and cost saving
- De-capacitation
Technical advantages
Application Values
- Full data measurement of the loading and thickness of the thinning area
- Small electrode sheet measurement is available;
- More valid and evaluable data
- Higher spatial resolution for defects detection;
- Coating size and alignment measurement
Slot Dies, Notching Knives & Feeding Systems
Slot dies are made by Kamikawa, which was established in 2019 in Wuxi, China. Kamikawa specializes in the research, design, and production of slot dies, notching knives, feeding systems, and closed-loop control systems.
With a plant area covering 8000m², Kamikawa boasts an annual capacity of approximately 1500 sets for coating slot dies and operates two dedicated coating experimental lines. The company's workforce comprises over 200 employees, including more than 50 R&D experts and over 40 after-sales service professionals.

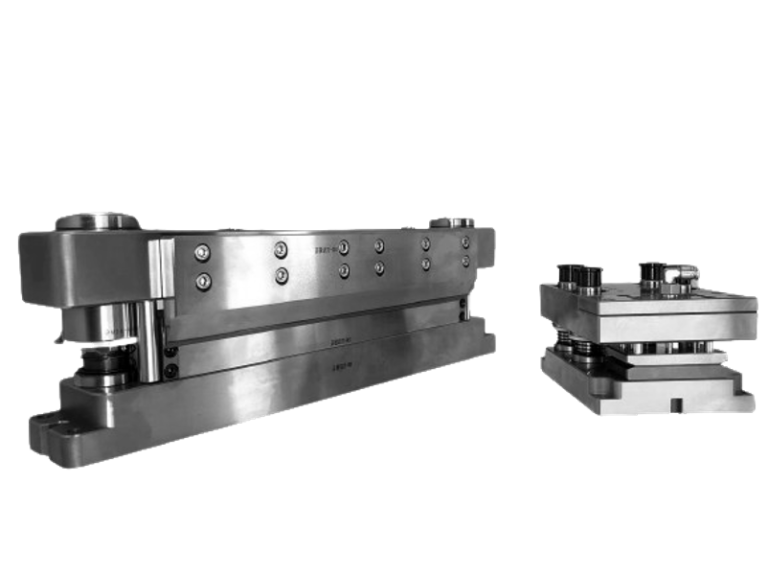

Stack Cutting Knife
Trimming knife
Notching Knifes
Notching Knife Series

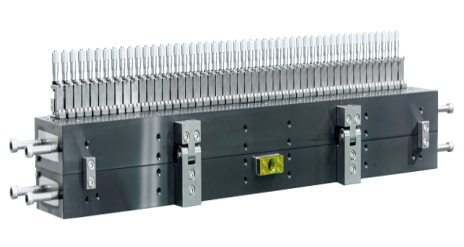

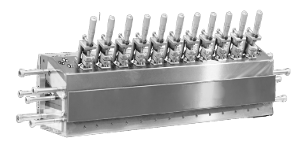

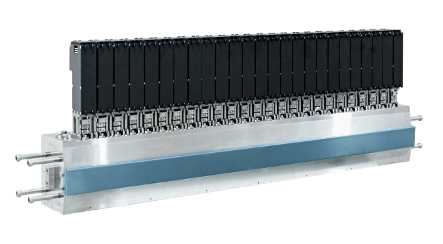

Closed-loop Slot die
Micrometer Slot die
Double-layer
micrometer slot die
Slot die Series

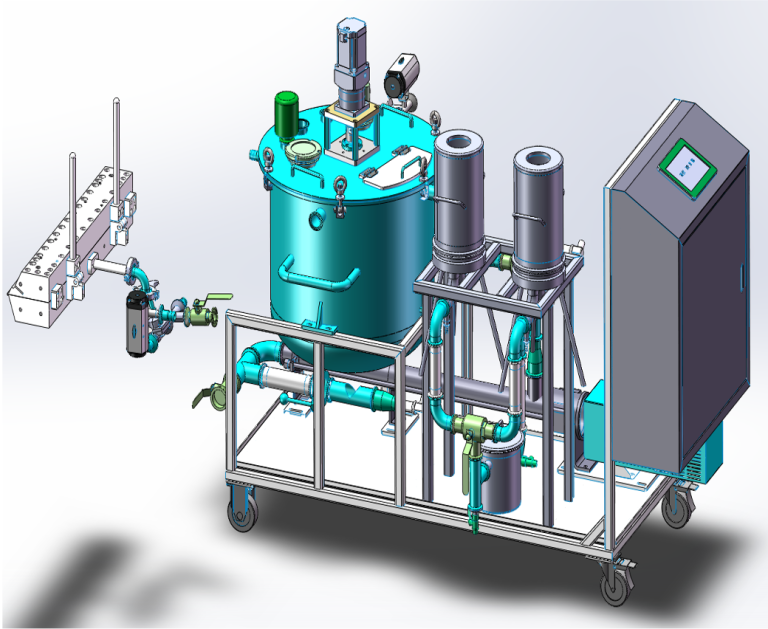

Feeding System
- Fluid simulation, customization according to customer needs;
- Double-pump coupled feeding, double-layer mixing tank, smooth and stable;
- Dual liquid level monitoring, four liquid level outputs, independent setting;
- Small slot dies split dispensing, precise control;
- Quick-clip piping and filter, easy to disassemble and maintenance.
Closed Loop System
- Signal acquisition: Real-time acquisition and storage of data, process and parameters, etc.;
- Data processing: Use the data filtering algorithm to calculate the new zone data;
- Solution generation: Conduct data analysis and deviation calculation to generate solutions;
- Adjustment output: Send the adjustment task to the motor executive system.
Product Series
Contact us for a tailored consultation, product demo or quote request
